EC > GATE 2016 SET-2 > Resonance

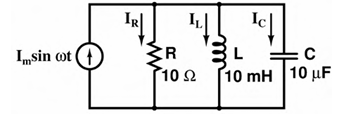

The figure shows an RLC circuit with a sinusoidal current source.
At resonance, the ratio |IL|/|IR|, i.e., the ratio of the magnitudes of the inductor current phasor and the resistor current phasor, is

Correct : 0.316
