EC > GATE 2015 SET-3 > Circuit Analysis

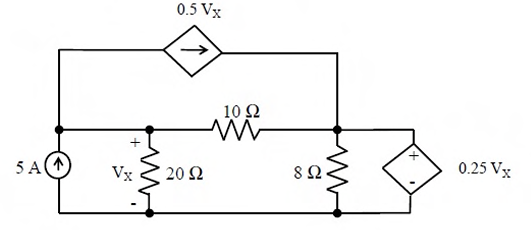

In the circuit shown, the voltage VX (in Volts) is __________.
Correct : 8
