EC > GATE 2014 SET-4 > Network Analysis

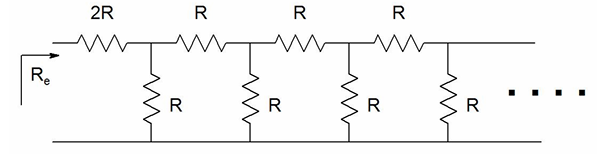

The equivalent resistance in the infinite ladder network shown in the figure, is Re.
The value of Re/R is ________

Correct : 2.62
