Civil Engineering > GATE 2026 SET-2 > Levelling

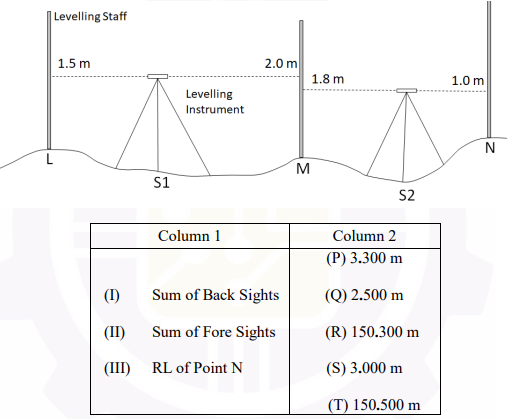

For the traverse given below, the benchmark is at ground point L. The Reduced Level (RL) of L is 150.000 m. The direction of the traverse is from L to N. The readings on levelling staff using the same levelling instrument kept at Stations S1 and S2 during the traversing are shown in the figure.
Matching the information given under Column 1 and Column 2, which one of the following options is CORRECT?
A
(I) – (P); (II) – (S); (III) – (R)
B
(I) – (P); (II) – (Q); (III) – (R)
C
(I) – (S); (II) – (P); (III) – (T)
D
(I) – (S); (II) – (Q); (III) – (T)

Correct : d
