Civil Engineering > GATE 2026 SET-2 > Truss Analysis

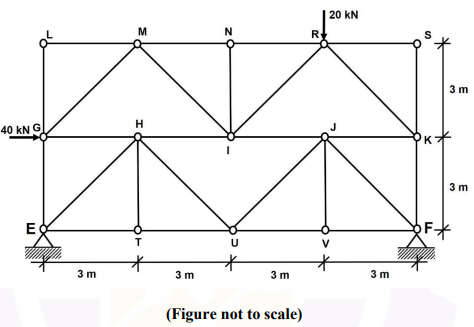

The plane truss shown in the figure is hinge-supported at E and F. The truss is subjected to vertical downward force at R and horizontal force at G.
The force (in kN) along with its nature in member JF is
Correct : b
Similar Questions
An idealised bridge truss is shown in the figure. The force in member $U_{2}L_{3}$ is _______ KN (round off to one decimal place).
The axial load (in kN) in the member PQ for the arrangement/assembly shown in the figure given below is ______.
