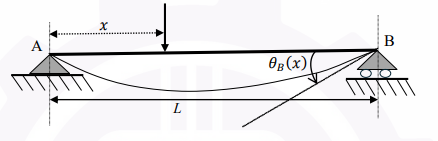

A simply supported, linearly elastic, homogeneous, prismatic beam of length L and flexural rigidity EI is shown in the figure.

The expression for the Influence Line Diagram (ILD) of the rotation θB(x) at the support B is
A
(1/6EI)(x2 − L2)
B
(1/6EIL)(x3 − L2x)
C
(1/3EI)(x2 − Lx)
D
(1/3EIL)(x3 − L2x)

Correct : b
