Civil Engineering > GATE 2026 SET-2 > Structural Analysis

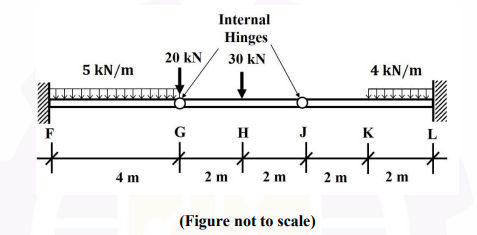

The horizontal beam shown in the figure has fixed supports at F and L. Internal hinges are provided at locations G and J. The beam supports vertically downward concentrated loads as well as uniformly distributed loads, as shown in the figure.
The upward vertical reaction (in kN) at the support L is
Correct : c
Similar Questions
The figure shows a two-hinged parabolic arch of span L subjected to a uniformly distributed load of intensity q per unit length.
The maximum bending moment...
A planar truss tower structure is shown in the figure.
Consider the following statements about the external and internal determinacies of the truss.
(P) E...
The value of M in the beam ABC shown in the figure is such that the joint B does not rotate.
The value of support reaction (in kN) at B should be equal to _...
