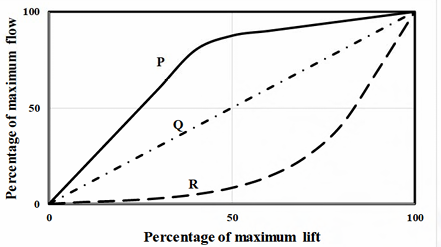

The inherent characteristics of three control valves P, Q and R are shown in the figure.
The CORRECT option(s) is/are
A
P is a quick opening valve
B
Q is a quick opening valve
C
P is an equal percentage valve
D
R is an equal percentage valve

Correct : a;d
