Chemical Engineering > GATE 2014 > Control System Response

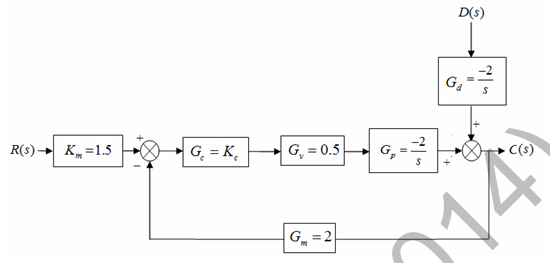

Consider the following block diagram for a closed-loop feedback control system
A proportional controller is being used with Kc=-4. If a step change in disturbance of magnitude 2 affects the system, then the value of the offset is

Correct : 0.5
