Chemical Engineering > GATE 2013 > Fluid Flow

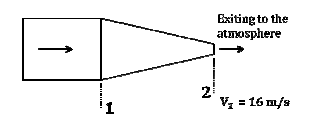

Water (density 1000 kg/m3) is flowing through a nozzle, as shown below and exiting to the atmosphere. The relationship between the diameters of the nozzle at locations 1 and 2 is D1=4 D2. The average velocity of the stream at location 2 is 16 m/s and the frictional loss between location 1 and location 2 is 10000 Pa. Assuming steady state and turbulent flow, the gauge pressure in Pa, at location 1 is
Correct : 119500
