Chemical Engineering > GATE 2011 > Conduction

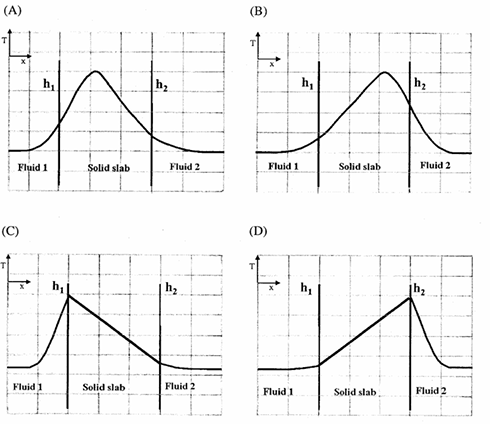

Heat is generated uniformly within a solid slab. The slab separates fluid 1 from fluid 2. The heat transfer coefficients between the solid slab and the fluids are h1 and h2(h2>h1) respectively. The steady state temperature profile (T vs. x) for one-dimensional heat transfer is CORRECTLY shown by
Correct : c
