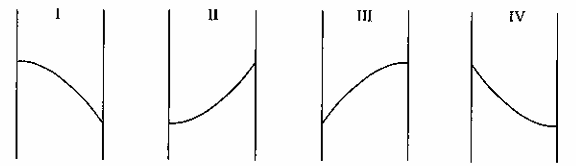

The figure below shows steady state temperature profiles for one dimensional heat transfer within a solid slab for the following cases:
P: uniform heat generation with left surface perfectly insulated
Q: uniform heat generation with right surface perfectly insulated
R: uniform heat consumption with left surface perfectly insulated
S: uniform heat consumption with right surface perfectly insulated
Match the profiles with appropriate cases.
P: uniform heat generation with left surface perfectly insulated
Q: uniform heat generation with right surface perfectly insulated
R: uniform heat consumption with left surface perfectly insulated
S: uniform heat consumption with right surface perfectly insulated
Correct : b
