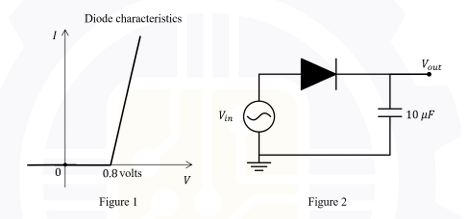

The I − V characteristics of a diode with a knee voltage Vknee = 0.8 volts is shown in Figure 1. This diode is used in the circuit shown in Figure 2, in which an input signal of Vin = 100sin(1000t) volts is applied. What is the voltage Vout (in volts) across the capacitor at steady state? Assume that the capacitor is initially discharged and the reverse breakdown voltage of the diode is much greater than 100 volts.
A
99.2
B
99.2cos(1000t)
C
99.2sin(1000t)
D
−99.2

Correct : a
