Biomedical Engineering > GATE 2022 > Op-amp Circuits

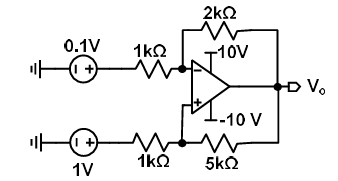

An ideal opamp with an infinite gain and infinite bandwidth is connected in feedback as shown below. The output voltage Vo for the given input voltages in the circuit is _______ V (accurate to one decimal place).

Correct : 4.6 to 4.6
