Biomedical Engineering > GATE 2022 > BJT Circuits

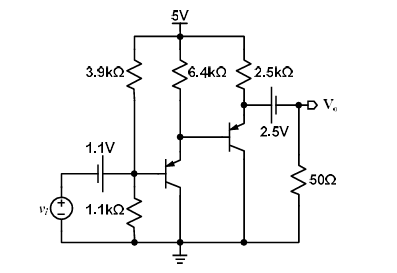

In the circuit diagram shown below, BJTs are biased with VEB = 0.7 V. Neglect the base current for operating point calculations. Assume infinite input and output impedance for the BJTs. The output voltage Vo with small input voltage vi = 10 mV is _______ mV (rounded off to one decimal place). The thermal voltage VT = 25 mV at room temperature.
Correct : 6.2 to 6.8
