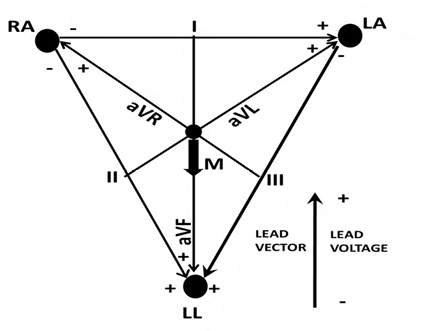

Consider the Einthoven's triangle of frontal ECG for the 3 electrodes RA, LA and LL shown in the figure. The augmented lead vectors bisect the bipolar lead vectors. At the peak of R wave, the cardiac vector M points vertically downwards with |M| = 5 mV.
The voltages on leads I and aVF are _______ mV and _______ mV, respectively.
The voltages on leads I and aVF are _______ mV and _______ mV, respectively.
Correct : a
