Biomedical Engineering > GATE 2022 > Frequency Response

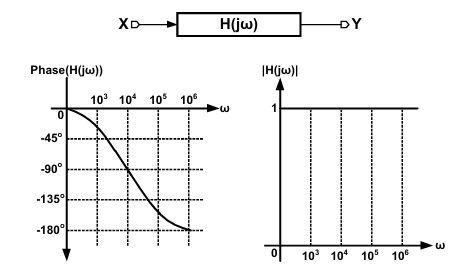

An input x(t) is applied to a system with a frequency transfer function given by H(jω) as shown below. The magnitude and phase response of the transfer function are shown below. If y(td) = 0 for x(t) = u(t), the time td (>0) is _______ µs.
A
100 ln(2)
B
10 ln(2)
C
1000 ln(2)
D
ln(2)

Correct : a
