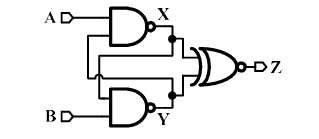

In the circuit diagram shown below, the logic gates operate with a supply voltage of 1 V. NAND and XNOR have 200 ps and 400 ps input-to-output delay, respectively.
At time t=T, A(t)=0, B(t)=1 and Z(t)=0. When the inputs are changed to A(t)=1, B(t)=0 at t=2T, a 1 V pulse is observed at Z. The pulse width of the 1 V pulse is _______ ps.
At time t=T, A(t)=0, B(t)=1 and Z(t)=0. When the inputs are changed to A(t)=1, B(t)=0 at t=2T, a 1 V pulse is observed at Z. The pulse width of the 1 V pulse is _______ ps.
Correct : b
