Biomedical Engineering > GATE 2022 > Sampling

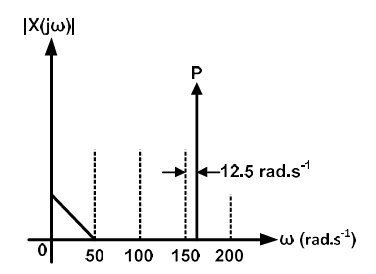

x(t) is a real continuous-time signal whose magnitude frequency response (|X(jω)|) is shown below. After sampling x(t) at 100 rad.s⁻¹, the spectral point P is down-converted to _______ rad.s⁻¹ in the spectrum of the sampled signal.
A
12.5
B
25
C
6.25
D
37.5

Correct : d
