Aerospace Engineering > GATE 2017 > Thin-walled Structures

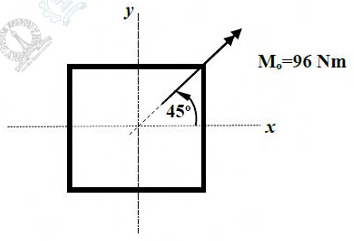

The maximum normal stress in MN/m2 for the thin walled beam of square cross section of outer dimension 120 mm x 120 mm and wall thickness 1 mm under the action of moment M0=96 Nm as shown in the figure is _______ (in three decimal places).
Correct : 6.900 to 7.400
